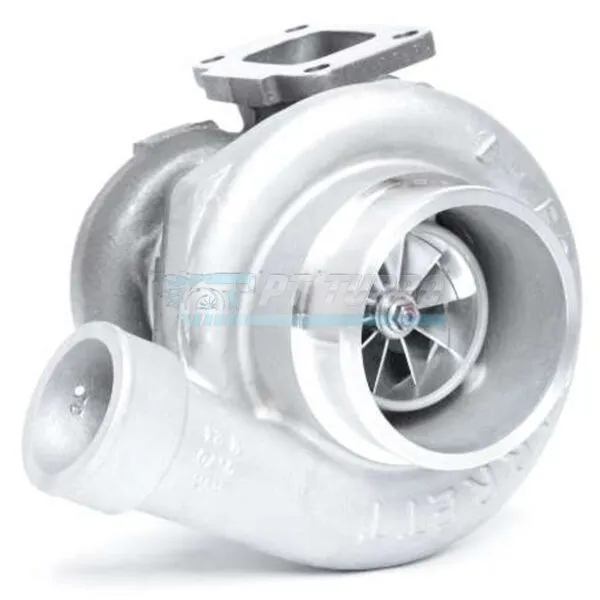

Name: Garrett GTW3884JB (aka GTW6465JB), 64mm Journal Bearing - Select Housing Options
Brand: Garrett
SKU: PTT-TBO-495
Availability: InStock

(909) 824-1020 Get a Quote

Home Shop Rebuild Service About FAQ Contact (909) 824-1020 Get a Quote

PTrim Turbine Wheel

Turbine Housing Options

Compressor Housing Options

Clear

Journal bearing GTW3884JB: 900HP potential with 64.3mm compressor inducer and 74.2mm turbine wheel. Features T04S frame housing, 58 trim compressor, and 76 trim turbine.

Specifications

Compressor Wheel Inducer: 64.3mm
Compressor Wheel Exducer: 84.4mm
Compressor Wheel Trim: 58
Turbine Wheel Inducer: 74.2mm
Turbine Wheel Exducer: 64.6mm

Weight	14 lbs
PTrim Turbine Wheel	.63 A/R (Available in T3 Inlet; 4 Bolt, 2.5" V-band or 3.0" V-Band Outlet), .63 A/R (Available in V-Band machined Inlet; 2.5" V-band Outlet), .68 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), .78 A/R (Available in T3 Divided Inlet; V-band 3" Outlet), .81 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), .82 A/R (Available in T3 Inlet; 4 Bolt, 5 Bolt Ford Style, 2.5" V-band or 3.0" V-Band Outlet), .82 A/R (Available in V-Band machined Inlet; 2.5" V-band Outlet); ATP Stainless V-band (Tial Compatible), .96 A/R (Available in T4 Non-Divided Inlet; V-band 3" Outlet), 1.06 A/R (Available in T3 Non-Divided Inlet; V-band 3.0" Outlet), 1.16 A/R (Available in T3 Divided Inlet; 4 Bolt, 3" Outlet), 1.16 A/R (Available in T3 Divided Inlet; and 3" V-band Outlet via welded ring
Turbine Housing Options	T3 Inlet, 4 Bolt Outlet (2.5"), T3 Inlet, V-Band Outlet (2.5"), T3 Non-Divided Inlet, machined V-Band Outlet 3" GTVB 1.06 A/R Only, T3 Non-Divided Inlet, welded V-Band Outlet (GT 3.0"). Available in .63, .82, or 1.08 A/R, T3 Divided Inlet, 4 Bolt Outlet (3.0"). Available in 1.16 A/R Only, T3 Divided Inlet, V-Band Outlet via welded ring in 1.16 A/R Only, T3 Divided Inlet, V-Band Outlet (3.0"), T3 Inlet, 5 Bolt (Ford Style) Outlet (Only .82 A/R Available), T4 Non-Divided Inlet, V-Band Outlet (3.0"), Stainless (Tial Compatible) V-Band in/Out (Only .82 A/R Available)
Compressor Housing Options	T04S (4" Inlet, 2.5" Outlet) with machined anti-surge
