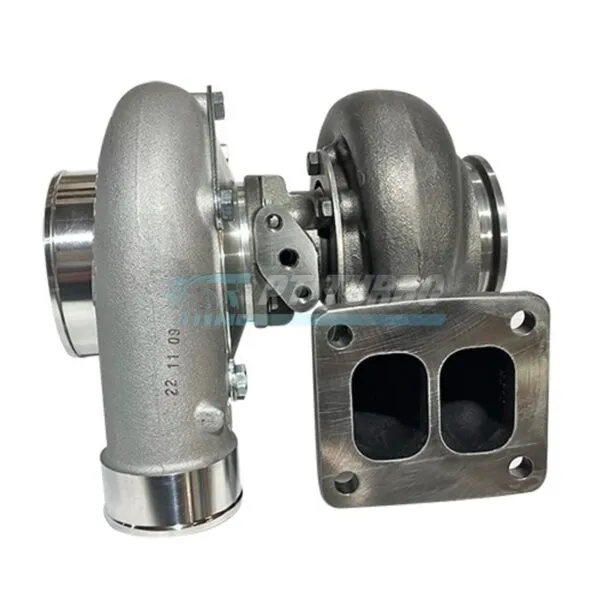

Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Brn Turbo .95 A/R T4 Div w/ 3" VB Exit
Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Brn Turbo .95 A/R T4 Div w/ 3" VB Exit
Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Brn Turbo .95 A/R T4 Div w/ 3" VB Exit
Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Brn Turbo .95 A/R T4 Div w/ 3" VB Exit

Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Brn Turbo .95 A/R T4 Div w/ 3″ VB Exit

$1,395.00

Garrett GTW3884JB journal bearing turbo flows 900 HP with 67mm compressor wheel and .95 A/R T4 divided turbine housing featuring 3″ V-band exit. T04S frame includes 4″ inlet, 2.5″ outlet, and integrated anti-surge for high-performance applications.

Specifications

  • Compressor Wheel Inducer: 67.3 mm
  • Compressor Wheel Exducer: 84.4 mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 74.2 mm
  • Turbine Wheel Exducer: 64.6 mm
  • Turbine Wheel Trim: 76
  • Turbine Housing: .95 A/R, T4 divided flange
  • Turbine Housing Exit: 3″ GT V-band
  • Compressor Housing: T04S frame
  • Compressor Inlet: 4″
  • Compressor Outlet: 2.5″
  • Compressor Housing Feature: Built-in & machined anti-surge
  • Bearing System: Journal bearing
  • HP Potential: 900 HP flow capacity
  • Model: GTW6765JB (GTW3884JB)
  • Also Known As: GTW6765JB
Weight 10 lbs
