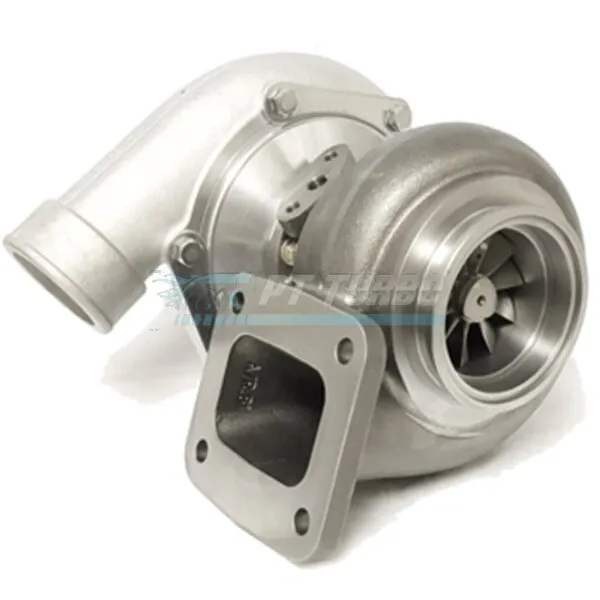

Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3" VB 81mm cen grv
Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3" VB 81mm cen grv
Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3" VB 81mm cen grv

Garrett GTW3884JB 67mm (aka GTW6765JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3″ VB 81mm cen grv

$1,395.00

900 HP-capable journal bearing turbo with 67mm compressor and 74mm turbine wheels. GTW3884JB features .81 A/R T4 undivided turbine housing, 3″ V-band, and T04S compressor frame—Garrett’s high-performance alternative to the 6466 platform.

Specifications

  • Compressor Wheel Inducer: 67.3 mm
  • Compressor Wheel Exducer: 84.4 mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 74.2 mm
  • Turbine Wheel Exducer: 64.6 mm
  • Turbine Wheel Trim: 76
  • Turbine A/R: .81 A/R
  • Turbine Housing: T4 undivided with 3″ V-band and 81mm center groove
  • Bearing Type: Journal bearing
  • Compressor Housing: T04S Frame
  • Compressor Inlet: 4″
  • Compressor Outlet: 2.5″
  • Anti-Surge: Built-in & machined
  • HP Potential: 900 HP
  • Model: GTW3884JB
  • Also Known As: GTW6765JB
Weight 20 lbs
Turbine A/R

,
