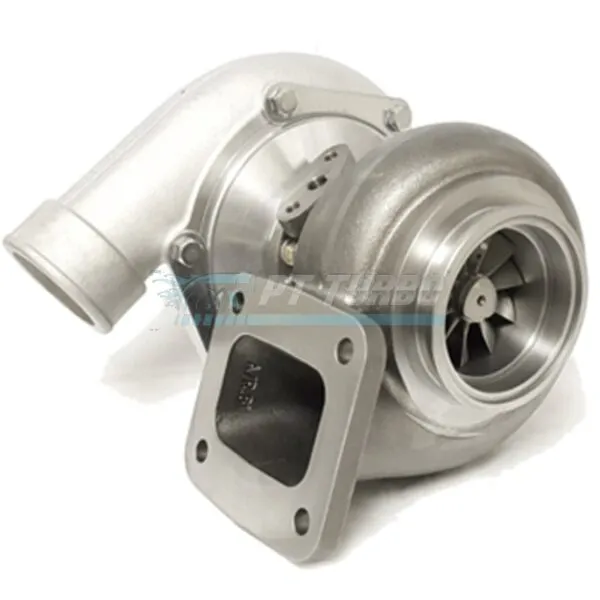

Garrett GTW3884JB 64mm (aka GTW6465JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3" VB 81mm cen grv
Garrett GTW3884JB 64mm (aka GTW6465JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3" VB 81mm cen grv
Garrett GTW3884JB 64mm (aka GTW6465JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3" VB 81mm cen grv

Garrett GTW3884JB 64mm (aka GTW6465JB) Journal Bearing Tbo .81 A/R T4 UND W/ 3″ VB 81mm cen grv

$1,295.00

Garrett GTW3884JB (GTW6465JB) journal bearing turbo supports up to 900 HP with 64mm compressor and 74mm turbine wheels. Features .81 A/R T4 undivided housing, 3″ V-band, and T04S frame for high-flow performance at competitive pricing.

Specifications

  • Compressor Wheel Inducer: 64.3 mm
  • Compressor Wheel Exducer: 84.4 mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 74.2 mm
  • Turbine Wheel Exducer: 64.6 mm
  • Turbine Wheel Trim: 76
  • Bearing Type: Journal Bearing
  • Turbine Housing A/R: .81 A/R
  • Turbine Housing Configuration: T4 Undivided
  • Turbine Outlet: 3″ V-band, 81mm center groove
  • Compressor Housing Frame: T04S Frame
  • Compressor Inlet: 4″
  • Compressor Outlet: 2.5″
  • Anti-Surge Design: Built-in & machined anti-surge
  • HP Potential: 900 HP
  • Model: GTW3884JB
  • Also Known As: GTW6465JB
Weight 20 lbs
Turbine A/R

,
