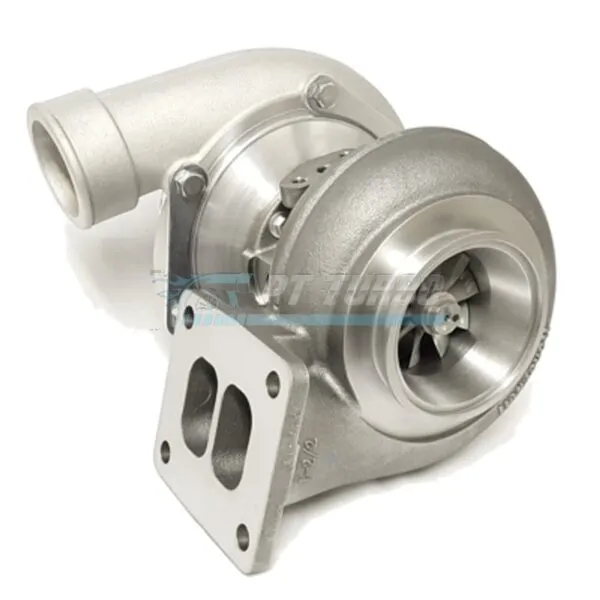

The Garrett GTW3684R is a ball bearing turbocharger built for enthusiasts who want proven 6262-class performance without compromise. Backed by Garrett’s GTW Series engineering, it delivers strong flow potential and quick response for serious performance builds. This is the turbo of choice for those who demand Garrett-grade reliability at a competitive price point.
Specifications
- Compressor Wheel Inducer: 62.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 71.0mm
- Turbine Wheel Exducer: 61.9mm
- Turbine Wheel Trim: 76
- A/R Ratio: 1.15 T4 Divided
- Turbine Housing Outlet: 3″ V-band
- Bearing Type: Ball Bearing
- Compressor Housing Frame: T04S
- Compressor Housing Inlet: 4″
- Compressor Housing Outlet: 2.5″
- Compressor Housing Feature: Built-in & machined anti-surge
- HP Potential: 750 HP
- Garrett P/N: GTW3684R
- Also Known As: GTW6262R
Performance & Application
The GTW3684R is Garrett’s Performance solution to the popular 6262 size turbo, offering great performance at a competitive price. Its ball bearing design and T4 divided housing configuration are engineered to support up to 750 HP potential flow. This turbo is built for performance enthusiasts seeking a proven, high-flowing 6262-class solution for demanding applications.
Frequently Asked Questions
- What HP can the GTW3684R support?
- The GTW3684R offers 750 HP potential flow.
- Is the GTW3684R a ball bearing or journal bearing turbo?
- The GTW3684R is a ball bearing turbo.
- What is the A/R ratio of the GTW3684R?
- The GTW3684R features a 1.15 A/R T4 divided turbine housing.
- What does GTW6262R refer to?
- GTW6262R is an alternate name for the Garrett GTW3684R turbocharger.
For enthusiasts seeking authentic Garrett engineering in the 6262 size class, the GTW3684R (GTW6262R) delivers the ball bearing performance and 750 HP potential that serious builds demand.
