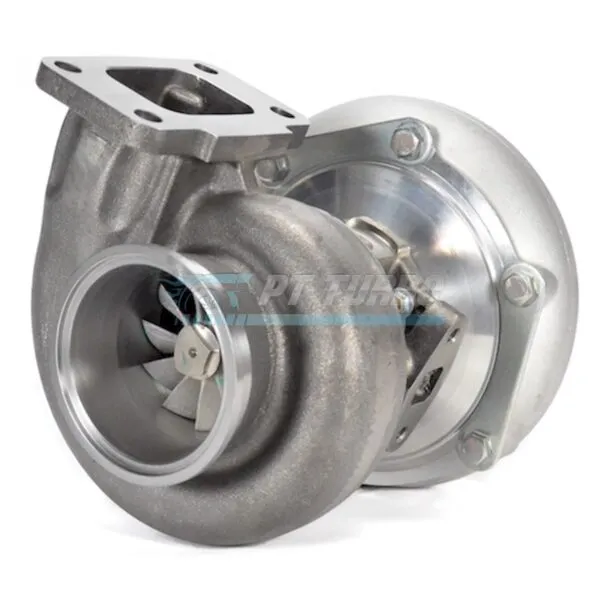

The Garrett GTW3684R delivers the ball bearing performance and durability enthusiasts expect from the GTW Series, built for builders chasing serious horsepower without sacrificing everyday drivability. Designed as Garrett’s refined take on the popular 6262 turbo size, it’s the choice for tuners who want proven flow capacity paired with a competitive price point. Whether stepping up from a stock turbo or finalizing a high-horsepower build, this unit is engineered to deliver.
Specifications
- Compressor Wheel Inducer: 62.3mm
- Compressor Wheel Exducer: 84.4mm
- Compressor Wheel Trim: 54
- Turbine Wheel Inducer: 71.0mm
- Turbine Wheel Exducer: 61.9mm
- Turbine Wheel Trim: 76
- Turbine Housing A/R: 1.06
- Turbine Housing Inlet: T3
- Turbine Housing Outlet: GT 3″ V-Band
- Compressor Housing Frame: T04S
- Compressor Housing Inlet: 4″
- Compressor Housing Outlet: 2.5″
- Compressor Housing Feature: Built-in & machined anti-surge
- Bearing Type: Ball Bearing
- HP Potential: 800HP potential flow
- Also Known As: GTW6262R
Performance & Application
The GTW3684R is built for high-horsepower applications where responsive spool and strong top-end flow both matter. Its ball bearing architecture supports quick spool-up while the 1.06 A/R turbine housing and T3 inlet configuration are matched for efficient exhaust energy transfer. The built-in and machined anti-surge feature on the T04S compressor housing helps extend the usable compressor map, making this turbo well-suited for aggressive street and performance builds targeting serious power levels. This is a turbo for enthusiasts who demand both performance and value in their GTW Series upgrade.
Frequently Asked Questions
- What HP can the GTW3684R support?
- The GTW3684R offers 800HP potential flow.
- Is this a ball bearing or journal bearing turbo?
- The GTW3684R is a ball bearing turbo.
- What is the A/R ratio of the turbine housing?
- The turbine housing on the GTW3684R has a 1.06 A/R ratio.
- What does GTW6262R refer to?
- GTW6262R is an alternate name for the Garrett GTW3684R.
For builders who want proven GTW Series ball bearing performance with 800HP potential flow at a competitive price, the GTW3684R (GTW6262R) is the clear choice.
