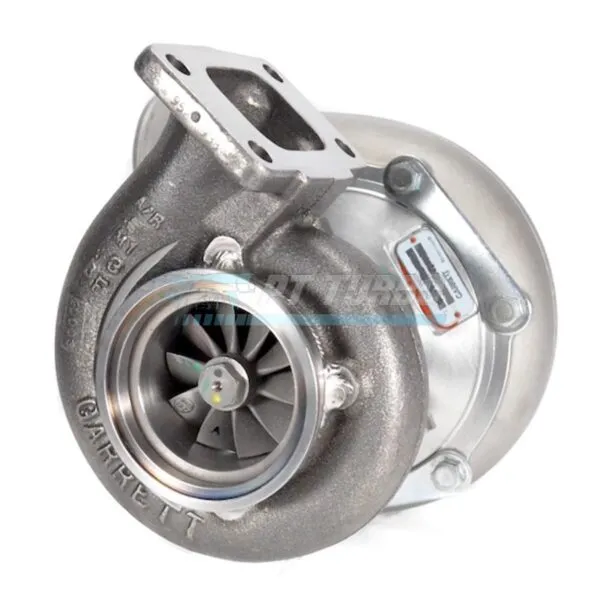

Garrett GTW3684R (aka GTW6262R) – 62mm BB Turbo, .82 A/R, T3 Inlet, Welded GT 3″ V-Band Outlet

Specifications

• Compressor Wheel Inducer: 62.3mm
• Compressor Wheel Exducer: 84.4mm
• Compressor Wheel Trim: 54
• Turbine Wheel Inducer: 71.0mm
• Turbine Wheel Exducer: 61.9mm
• Turbine Wheel Trim: 76
• Turbine Housing A/R Ratio: .82
• Turbine Housing Inlet: T3 Undivided Inlet
• Turbine Housing Outlet: Welded GT 3″ V-Band Outlet
• Bearing Type: Ball Bearing
• Compressor Housing Frame: T04S Frame
• Compressor Housing Inlet: 4″
• Compressor Housing Outlet: 2.5″
• Compressor Housing Feature: Built-in & machined anti-surge
• HP Potential: 750HP potential flow
• Model: GTW3684R
• Also Known As: GTW6262R
