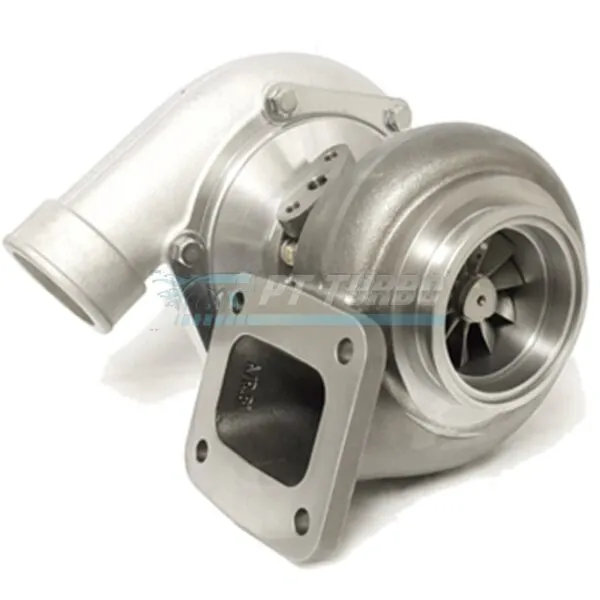

Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .82 A/R T4 UNDIVIDED WITH 3" GT V-BAND
Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .82 A/R T4 UNDIVIDED WITH 3" GT V-BAND
Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .82 A/R T4 UNDIVIDED WITH 3" GT V-BAND

Garrett GTW3684JB (aka GTW6262JB) Journal Brg Tbo .82 A/R T4 UNDIVIDED WITH 3″ GT V-BAND

$1,295.00

750 HP capacity journal bearing turbo with 62/84mm compressor, 71/62mm turbine, .82 A/R T4 undivided housing, and 3″ GT V-band exit. GTW3684JB combines the popular 6262 size platform with T04S frame .70 A/R compressor housing for strong mid-range performance at competitive pricing.

Specifications

  • Compressor Wheel Inducer: 62.3mm
  • Compressor Wheel Exducer: 84.4mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 71.0mm
  • Turbine Wheel Exducer: 61.9mm
  • Turbine Wheel Trim: 76
  • Compressor Housing: T04S Frame .70 A/R
  • Compressor Inlet: 4″
  • Compressor Outlet: 2.5″
  • Compressor Housing Feature: Built-in & machined anti-surge
  • Turbine Housing A/R: .82
  • Turbine Housing Configuration: T4 undivided
  • Turbine Housing Exit: 3″ GT V-band (90mm flange OD, 81mm centering)
  • Bearing Type: Journal bearing
  • HP Potential Flow: 750 HP
  • Model: GTW3684JB
  • Also Known As: GTW6262JB
Weight 20 lbs
