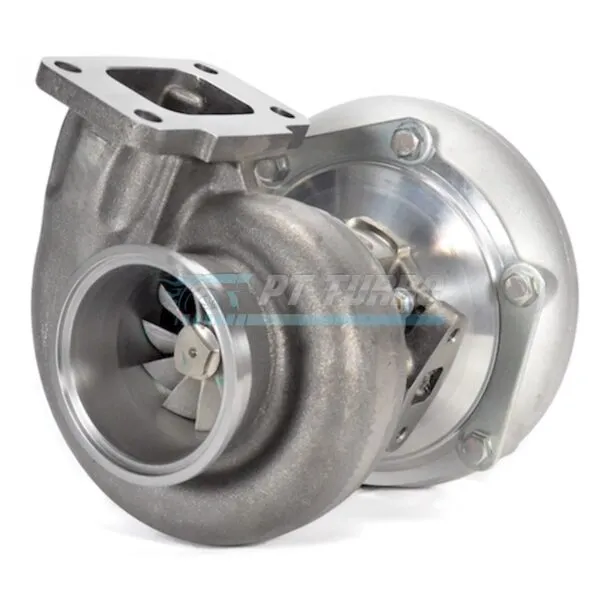

Garrett GTW3684JB (aka GTW6262JB), 62mm JB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Garrett GTW3684JB (aka GTW6262JB), 62mm JB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Garrett GTW3684JB (aka GTW6262JB), 62mm JB Turbo + T3 V-Band Turbine Hsg 1.06 A/R
Garrett GTW3684JB (aka GTW6262JB), 62mm JB Turbo + T3 V-Band Turbine Hsg 1.06 A/R

Garrett GTW3684JB (aka GTW6262JB), 62mm JB Turbo + T3 V-Band Turbine Hsg 1.06 A/R

$1,295.00

62mm journal bearing turbo with 800HP capacity, T3 inlet, GT 3″ V-Band outlet, and 1.06 A/R turbine housing. 62.3mm/84.4mm compressor wheels (54 trim) and 71mm/61.9mm turbine wheels (76 trim); GTW6262JB.

Specifications

  • Compressor Wheel Inducer: 62.3mm
  • Compressor Wheel Exducer: 84.4mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 71mm
  • Turbine Wheel Exducer: 61.9mm
  • Turbine Wheel Trim: 76
  • Bearing Type: Journal Bearing
  • Compressor Housing Frame: T04S Frame
  • Compressor Inlet: 4″
  • Compressor Outlet: 2.5″
  • Compressor Housing Feature: Built-in & machined anti-surge
  • Turbine Housing Inlet: T3
  • Turbine Housing Outlet: GT 3″ V-Band
  • Turbine Housing A/R: 1.06
  • HP Potential: 800HP potential flow
  • Model: GTW3684JB
  • Also Known As: GTW6262JB
Weight 20 lbs
