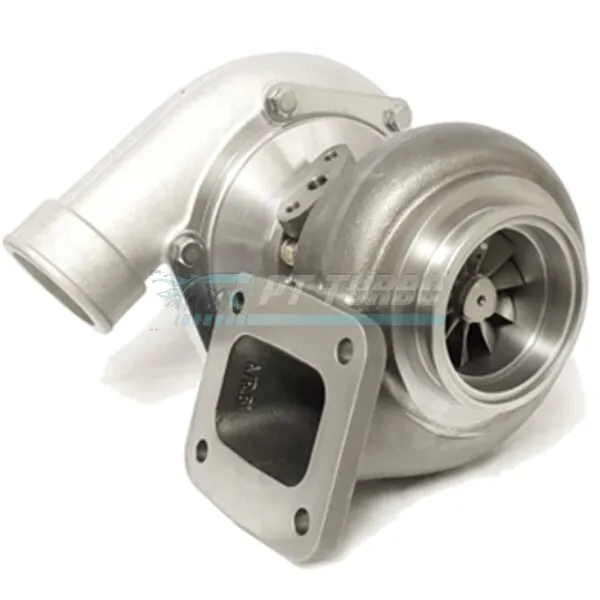

Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .82 A/R T4 UNDIVIDED WITH 3" GT V-BAND
Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .82 A/R T4 UNDIVIDED WITH 3" GT V-BAND
Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .82 A/R T4 UNDIVIDED WITH 3" GT V-BAND

Garrett GTW3476JB (aka GTW5857JB) – 58mm JB Turbo, .82 A/R T4 UNDIVIDED WITH 3″ GT V-BAND

$1,195.00

Garrett’s 58mm journal bearing turbo (GTW3476JB/GTW5857JB): 700HP potential with .82 A/R T4 undivided turbine housing and 3″ GT V-band exit. Compressor trim 58 (58.3mm/76.4mm wheels) pairs with turbine trim 76 (65.0mm/56.6mm).

Out of stockCall (909) 824-1020, email us about this part or use the contact form. We reply with availability.We can also rebuild the turbo you have: most rebuilds ship in 3 days or less, with a 12-month, unlimited-mileage warranty. Ask about it when you call.

Specifications

  • Compressor Wheel Inducer: 58.3mm
  • Compressor Wheel Exducer: 76.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 65.0mm
  • Turbine Wheel Exducer: 56.6mm
  • Turbine Wheel Trim: 76
  • Turbine Housing A/R: .82
  • Turbine Housing Configuration: T4 Undivided
  • Turbine Outlet: 3″ GT V-band
  • V-band Flange OD: 90mm
  • V-band Centering: 81mm
  • Bearing Type: Journal Bearing
  • HP Potential: 700HP potential flow
  • Model: GTW3476JB
  • Also Known As: GTW5857JB
Weight 20 lbs
