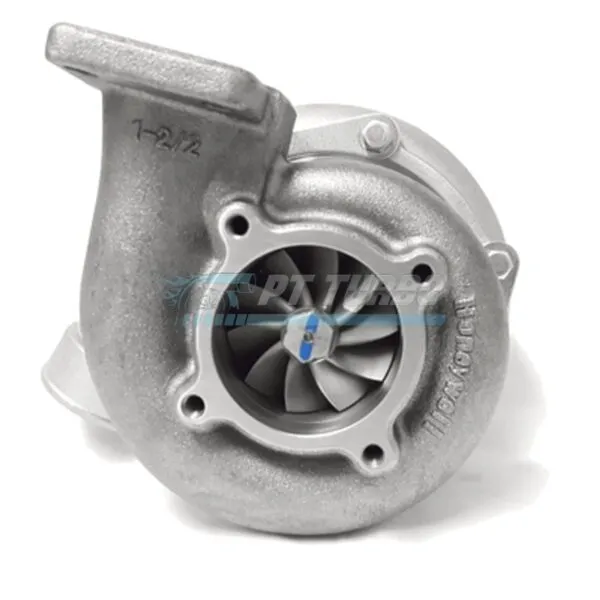

Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .63 A/R, T3 Inlet, T31(NARROW) 4 BOLT EXIT
Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .63 A/R, T3 Inlet, T31(NARROW) 4 BOLT EXIT
Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .63 A/R, T3 Inlet, T31(NARROW) 4 BOLT EXIT
Garrett GTW3476JB (aka GTW5857JB) - 58mm JB Turbo, .63 A/R, T3 Inlet, T31(NARROW) 4 BOLT EXIT

Garrett GTW3476JB (aka GTW5857JB) – 58mm JB Turbo, .63 A/R, T3 Inlet, T31(NARROW) 4 BOLT EXIT

$1,195.00

Garrett’s 58mm journal bearing GTW3476JB: up to 700hp with .63 A/R turbine housing, T3 undivided inlet, and narrow T31 4-bolt outlet. 58/76 compressor trim and 65/56.6mm turbine wheels.

Out of stockCall (909) 824-1020, email us about this part or use the contact form. We reply with availability.We can also rebuild the turbo you have: most rebuilds ship in 3 days or less, with a 12-month, unlimited-mileage warranty. Ask about it when you call.

Specifications

  • Compressor Wheel Inducer: 58.3mm
  • Compressor Wheel Exducer: 76.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 65.0mm
  • Turbine Wheel Exducer: 56.6mm
  • Turbine Wheel Trim: 76
  • A/R Ratio: .63
  • Compressor Inlet: T3 Undivided Inlet
  • Turbine Housing Outlet: Narrow T31 4 Bolt Exit
  • Bearing Type: Journal Bearing
  • HP Potential: 700HP
  • Model: GTW3476JB
  • Also Known As: GTW5857JB
Weight 20 lbs
