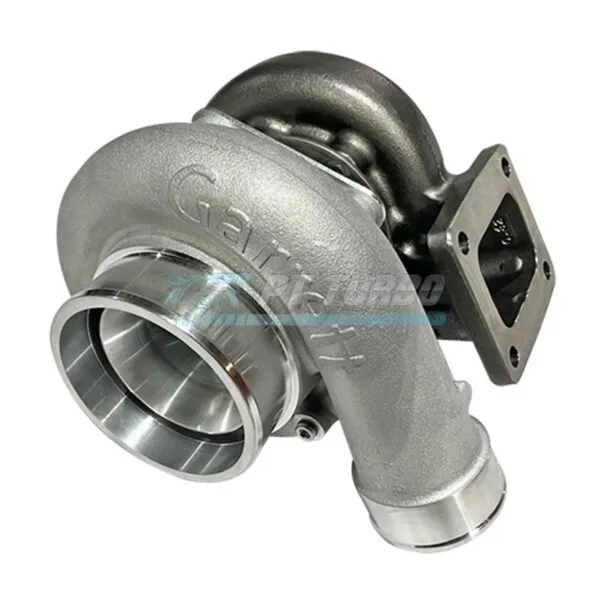

Garrett GBC35-700 Full Turbo with T4 UNDIVIDED .82 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T4 UNDIVIDED .82 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T4 UNDIVIDED .82 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T4 UNDIVIDED .82 A/R Turbine Housing

Garrett GBC35-700 Full Turbo with T4 UNDIVIDED .82 A/R Turbine Housing

$1,099.95

Garrett Club Line GBC35-700 features a 58mm compressor wheel (0.72 A/R) paired with a 68mm turbine wheel in T4 undivided .82 A/R housing, with 3″ GT V-Band exit. Ball-bearing design.

Specifications

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: .82
  • Turbine Housing Configuration: T4 Open (Undivided)
  • Turbine Housing Exit Flange: 3″ GT V-Band

Downloads

Weight 10 lbs
