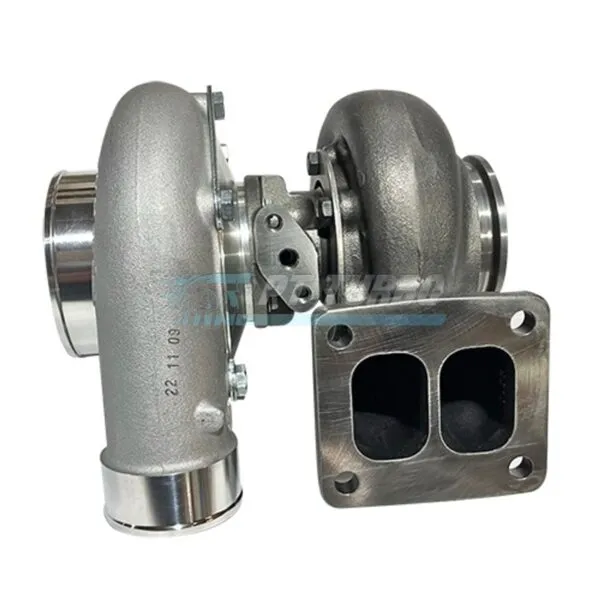

Garrett GBC35-700 Full Turbo with T4 DIVIDED .95 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T4 DIVIDED .95 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T4 DIVIDED .95 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T4 DIVIDED .95 A/R Turbine Housing

Garrett GBC35-700 Full Turbo with T4 DIVIDED .95 A/R Turbine Housing

$1,107.95

Garrett GBC35-700: up to 700hp with a 58mm compressor wheel (0.72 A/R) and 68mm turbine wheel (.95 A/R divided housing) on a ball bearing cartridge. T4 flange with 3″ V-band exit.

Specifications

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.72
  • Turbine Housing Configuration: T4 Divided
  • Turbine Housing A/R: .95
  • Turbine Housing Exit Flange: 3″ GT V-Band
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Model: GBC35-700

Downloads

Weight 10 lbs
