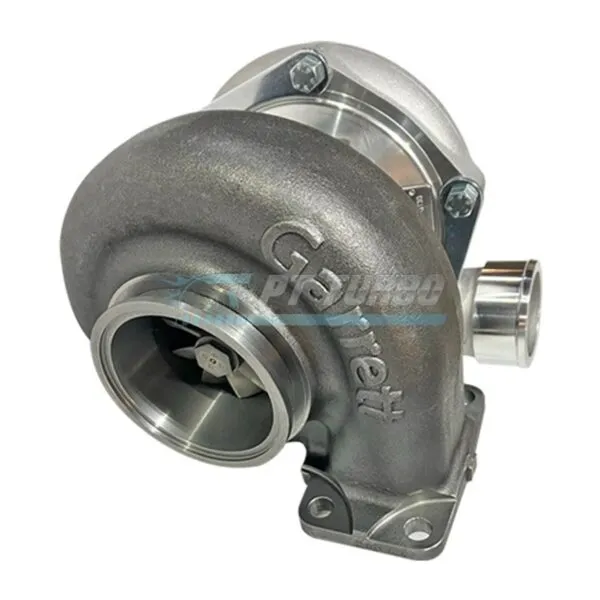

Garrett GBC35-700 Full Turbo with T3 UNDIVIDED .82 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T3 UNDIVIDED .82 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T3 UNDIVIDED .82 A/R Turbine Housing
Garrett GBC35-700 Full Turbo with T3 UNDIVIDED .82 A/R Turbine Housing

Garrett GBC35-700 Full Turbo with T3 UNDIVIDED .82 A/R Turbine Housing

$1,099.95

58mm compressor wheel with 0.72 A/R housing flows up to 700hp, paired with 68mm turbine wheel and .82 A/R T3 undivided turbine housing. Garrett Club Line GBC35-700 with 3″ GT V-Band exit flange.

Specifications

  • Compressor Wheel Inducer: 58mm
  • Compressor Wheel Exducer: 76mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.72
  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Configuration: T3 Open (Undivided)
  • Turbine Housing A/R: 0.82
  • Turbine Housing Exit Flange: 3″ GT V-Band
  • Model: GBC35-700

Downloads

Weight 10 lbs
