Garrett G-Series Supercore, G55-2900 106mm , P/N: 880547-5022S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-2900 106mm , P/N: 880547-5022S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-2900 106mm , P/N: 880547-5022S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-2900 106mm , P/N: 880547-5022S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-2900 106mm , P/N: 880547-5022S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-2900 106mm , P/N: 880547-5022S, G55 Turbo W/O turbine housing

Garrett G-Series Supercore, G55-2900 106mm, P/N: 880547-5022S, G55 Turbo W/O turbine housing

$6,286.81

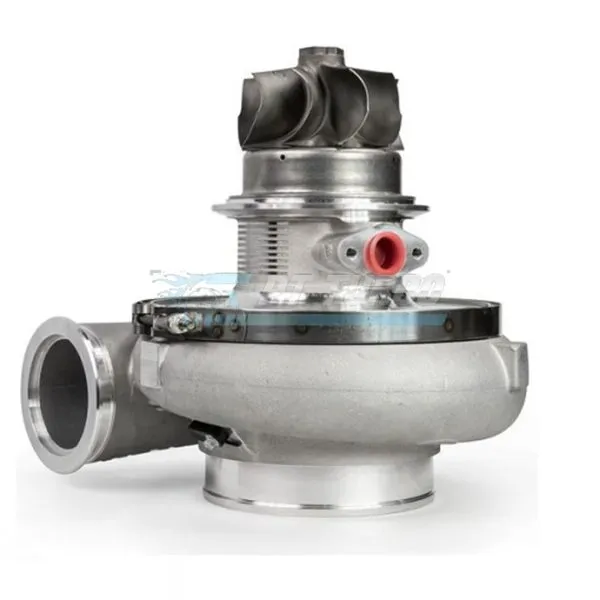

G55-2900 supercore (P/N: 880547-5022S) features a 106mm inconel turbine wheel with 15% increased flow, 106mm compressor inducer, and dual ceramic ball bearing center housing. For drag racing applications up to 3000 hp with G-Series aerodynamics and one-piece aluminum construction.

Specifications

  • Compressor Wheel Inducer: 106mm
  • Turbine Wheel Exducer: 106mm (+4mm compared to GTX55)
  • Turbine Wheel Material: Inconel
  • Turbine Flow Increase: Up to 15% more flow compared to GTX Gen II
  • Bearing System: 16mm dual ceramic ball bearing
  • Center Housing: One-piece aluminum, air-cooled
  • Oil Inlet/Outlet: Retains oil inlet and outlet specifications from previous GTX designs
  • Outline Compatibility: Interchangeable with GTX Gen II turbos
  • Horsepower Capacity: Supports nearly 3000 horsepower

Downloads

Weight 20 lbs
