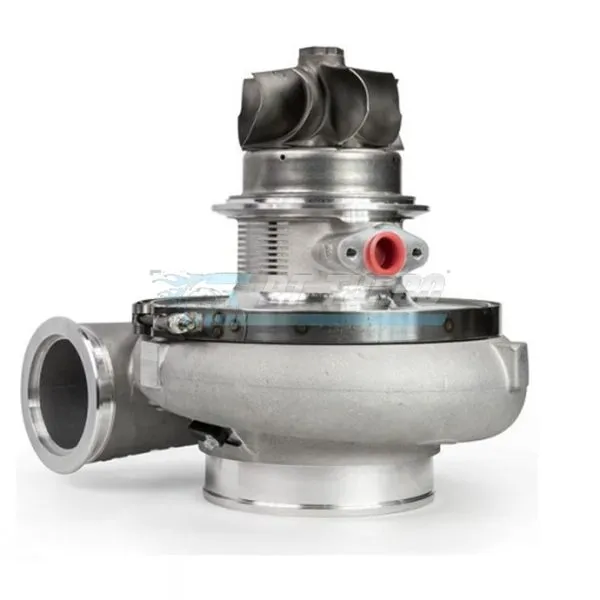

Garrett G-Series Supercore, G55-2100 91mm, P/N: 880547-5003S, G55 Turbo W/O turbine housing

The Garrett G55-2100 Supercore is a purpose-built turbocharger core for racers who demand extreme horsepower without compromise. Designed for the brutal demands of Radial vs The World and X275 Drag Racing, this 91mm-inducer supercore is engineered to be paired with your choice of turbine housing to complete a build tailored to your specific application. This is the core assembly only, giving experienced tuners and race teams the flexibility to select the exact turbine housing configuration their platform demands.

Specifications

• Model Designation: G55-2100
• Compressor Wheel Inducer: 91mm
• Turbine Wheel Material: Inconel
• Turbine Exducer: 106mm (+4mm compared to GTX55)
• Turbine Flow Improvement: Up to 15% more flow compared to GTX Gen II
• Bearing Type: 16mm dual ceramic ball bearing
• Center Housing: One-piece aluminum, air-cooled
• HP Capacity: Supports nearly 3000 horsepower
• Outline Interchangeability: Interchangeable with GTX Gen II turbos
• Turbine Housing: Sold without turbine housing
• Garrett P/N: 880547-5003S

Performance & Application

This G55 supercore is engineered for extreme horsepower applications where boost response and top-end flow both matter under sustained, brutal load. The newly

Downloads

• Garrett Performance G Series G55 Sell Sheet
