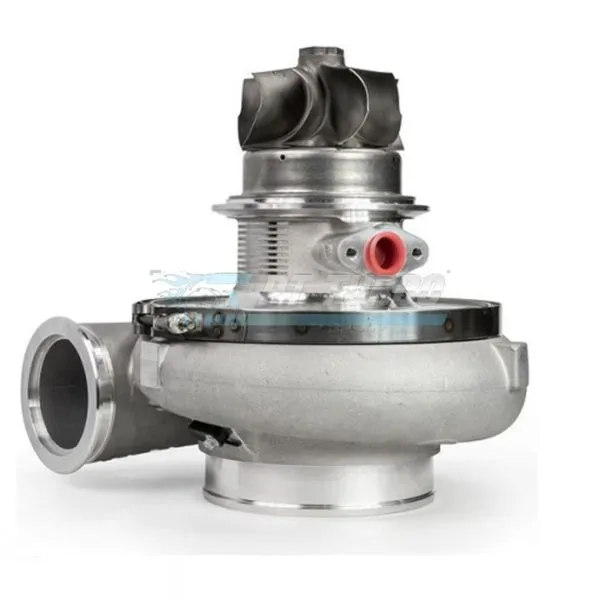

Built for teams chasing four-digit horsepower numbers on the strip, the Garrett G55-1950 88mm Supercore is the foundation piece for radical drag racing turbo systems including Radial vs The World and X275 competition. This is the bare cartridge — supplied without a turbine housing — giving engine builders the flexibility to pair it with the exact housing configuration their combination demands. For shops building no-compromise, ball-bearing G-Series turbo systems, this is the core that starts the build.
Specifications
- Compressor Wheel Inducer: 88mm
- Turbine Wheel Exducer: 106mm
- Turbine Wheel Material: Inconel
- Turbine Flow Improvement: Up to 15% more flow compared to GTX Gen II
- Center Housing Construction: One-piece aluminum, air-cooled
- Bearing System: 16mm dual ceramic ball bearing
- Configuration: Supercore, supplied without turbine housing
- Horsepower Capacity: Supports nearly 3000 horsepower
- Outline Compatibility: Interchangeable with GTX Gen II turbos
- Garrett P/N: 880547-5002S
Performance & Application
The G55-1950 88mm Supercore is engineered for extreme horsepower applications where boost response and top-end flow both matter. The newly engineered inconel turbine wheel and larger turbine exducer deliver a significant flow increase over the previous GTX Gen II design, while the one-piece aluminum center housing reduces overall core weight and improves rotor dynamics through its dual ceramic ball bearing cartridge. This combination allows the G55-1950 to deliver amazing boost response while still supporting nearly 3000 horsepower, making it a purpose-built solution for drag racing platforms that demand both instant spool and massive top-end capacity. Because the core ships without a turbine housing, builders can select the turbine housing configuration that best matches their manifold and backpressure targets.
Compatibility & Fitment
- Radial vs The World drag racing applications
- X275 Drag Racing applications
Frequently Asked Questions
- What horsepower can the G55-1950 88mm Supercore support?
- It supports nearly 3000 horsepower with amazing boost response.
- Is the G55-1950 a ball bearing turbo?
- Yes, it uses a 16mm dual ceramic ball bearing in a one-piece aluminum center housing for premium rotor dynamics.
- Does this Supercore include a turbine housing?
- No, this is the G55 Supercore supplied without a turbine housing.
- What turbine housing options are available for the G55?
- The G55 is offered with two stainless steel V-band turbine housings in 1.24 A/R and 1.40 A/R, as well as an open T6 turbine housing available in 1.00, 1.12, 1.24, and 1.40 A/R sizes.
For builders targeting nearly 3000 horsepower with a compact, high-flowing ball bearing core, the Garrett G55-1950 88mm Supercore delivers the aerodynamic advancements and durability required for serious drag racing competition.
