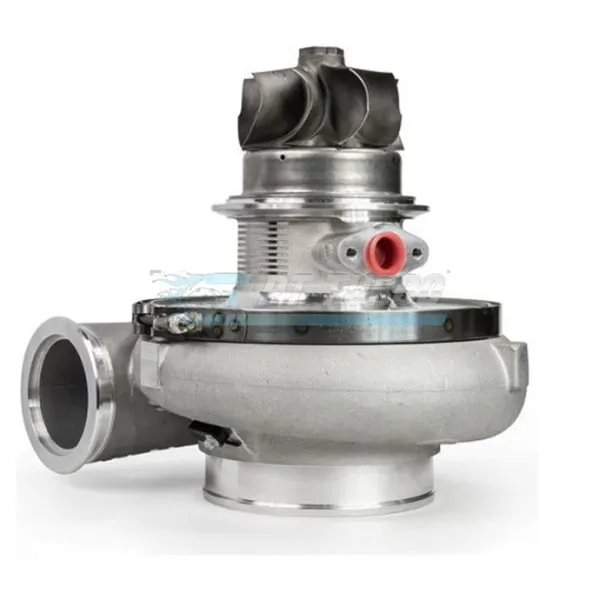

Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing
Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing

Garrett G-Series Supercore, G55-1850 85mm, P/N: 880547-5001S, G55 Turbo W/O turbine housing

$4,480.28

85mm compressor supercore featuring 106mm inconel turbine exducer with 15% increased flow, 16mm dual ceramic ball bearing, and one-piece aluminum center housing. Supports applications to 3000hp with G-Series aerodynamics. P/N: 880547-5001S.

Specifications

  • Compressor Wheel Inducer: 85mm
  • Turbine Wheel Exducer: 106mm (+4mm compared to GTX55)
  • Turbine Wheel Material: Inconel
  • Turbine Flow Increase: Up to 15% more flow compared to GTX Gen II
  • Bearing System: 16mm dual ceramic ball bearing
  • Center Housing: One-piece aluminum, air cooled
  • HP Capacity: Supports nearly 3000 horsepower
  • Frame Size: G55
  • Configuration: Supercore (without turbine housing)
  • Housing Interchangeability: Outline interchangeable with GTX Gen II turbos
  • Oil Inlet/Outlet: Retains oil inlet and outlet specifications from previous GTX designs
  • Garrett P/N: 880547-5001S

Downloads

Weight 20 lbs
