GARRETT G-SERIES G57 2350 CHRA G57-2350, G57-94mm, P/N: 880546-5022S

Garrett G-Series G57 2350 CHRA G57-2350, G57-94mm, P/N: 880546-5022S

$5,167.18

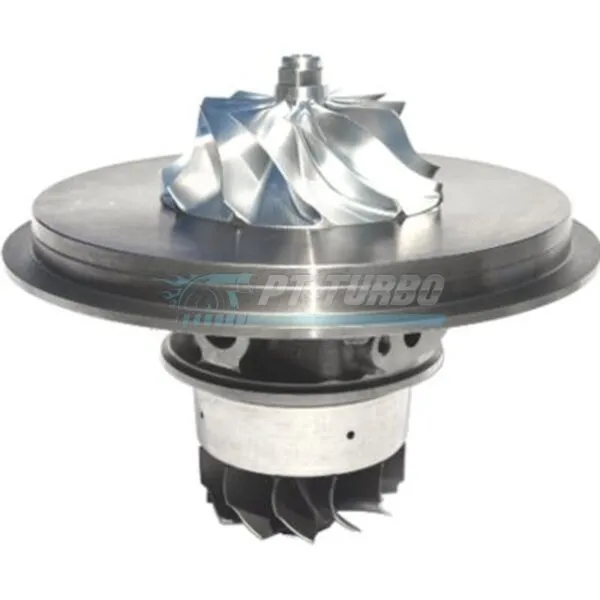

Center housing and rotating assembly (CHRA) for the Garrett G57-2350. Compressor wheel 94 / 133 mm, turbine wheel 118 / 112 mm. The compressor housing and the turbine housing are not included. Match the part number to your turbo before ordering.

Specifications

  • Compressor Wheel Size: 94mm
  • HP Capacity: 2,350 hp
  • Bearing Type: Dual-ball bearing
  • Garrett P/N: 880546-5022S
  • Also Known As: G57-2350, G57-94mm

Wheels

  • Compressor wheel: 94 mm inducer, 133 mm exducer
  • Turbine wheel: 118 mm inducer, 112 mm exducer, 90 trim

These are the wheel sizes Garrett publishes for the G57-2350. The CHRA is that turbo’s center section.

Weight 10 lbs
