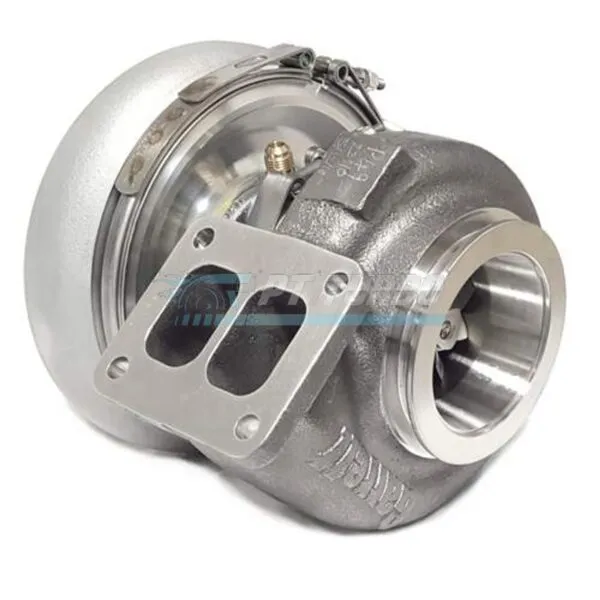

The Garrett G-Series G45-1350 is a high-output turbocharger unit built for enthusiasts and builders chasing serious four-digit horsepower without sacrificing turbine-side response. Paired with a T4 divided housing, it’s engineered for high-boost applications where aggressive spool characteristics and top-end flow both matter. This is a purpose-built unit for those who demand Garrett’s engineering pedigree in a big-power package.
Specifications
- Compressor Wheel Inducer: 72mm
- Compressor Wheel Exducer: 102mm
- Compressor Wheel Trim: 51
- Compressor Housing A/R: 0.85
- Turbine Wheel Inducer: 89mm
- Turbine Wheel Exducer: 82mm
- Turbine Wheel Trim: 84
- Turbine Housing: T4 Divided, 1.28 A/R
- HP Capacity: Up to 1350HP
Performance & Application
The G45-1350 is designed for builds targeting massive horsepower while retaining strong turbine-side response through its divided T4 housing configuration. Its 72mm compressor inducer and 51 trim wheel work with the 0.85 A/R compressor housing to deliver high-flow capability at the top end of the power curve. On the exhaust side, the 89mm turbine inducer and 84 trim wheel are matched to the 1.28 A/R divided turbine housing for aggressive spool characteristics. This configuration is built for high-horsepower applications where both spool quality and sustained top-end flow are critical.
Frequently Asked Questions
- What horsepower can the G45-1350 support?
- The G45-1350 is capable of supporting up to 1350HP.
- What turbine housing comes with the G45-1350?
- It’s equipped with a T4 divided turbine housing with a 1.28 A/R.
- What is the compressor housing A/R ratio?
- The compressor housing A/R is 0.85.
- What size is the compressor wheel?
- The compressor wheel features a 72mm inducer and 102mm exducer with a 51 trim.
For builders targeting serious horsepower with a turbine housing engineered for aggressive spool, the Garrett G45-1350 delivers the flow capacity and response characteristics to back up a true four-digit power build.
