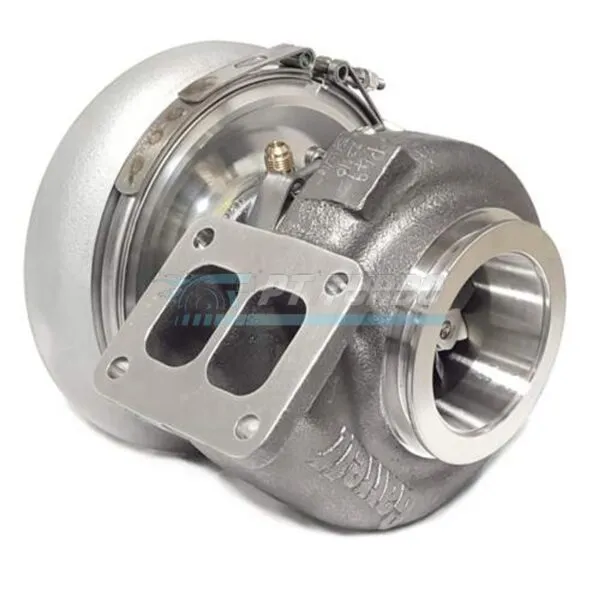

Garrett G-Series G45-1350 (72MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing

Garrett G-Series G45-1350 (72MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.15 A/R Turbine Housing

$4,413.45

Garrett G-Series G45-1350: up to 1350HP with a 72mm compressor wheel (0.85 A/R housing) and 89mm turbine wheel paired to a T4 divided 1.15 A/R turbine housing. Ball bearing construction.

Specifications

  • Compressor Wheel Inducer: 72mm
  • Compressor Wheel Exducer: 102mm
  • Compressor Wheel Trim: 51
  • Compressor Housing A/R: 0.85
  • Turbine Wheel Inducer: 89mm
  • Turbine Wheel Exducer: 82mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: T4 Divided, 1.15 A/R
  • HP Capacity: Up to 1350HP
  • Bearing Type: Ball bearing

Downloads

Weight 20 lbs
