Garrett G-SERIES G45 1125 CHRA G45-1125, P/N: 860779-5016S

Garrett G-SERIES G45 1125 CHRA G45-1125, P/N: 860779-5016S

$2,897.42

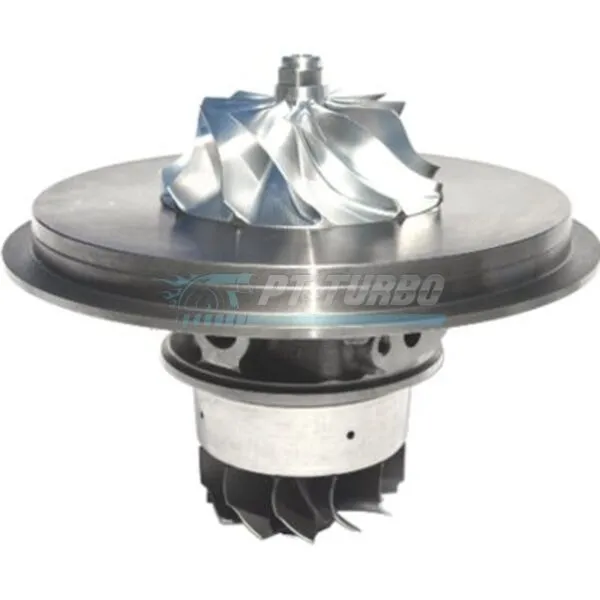

Center housing and rotating assembly (CHRA) for the Garrett G45-1125. Compressor wheel 67 / 102 mm, turbine wheel 89 / 82 mm. The compressor housing and the turbine housing are not included. Match the part number to your turbo before ordering.

Specifications

  • Bearing Type: Dual Ball Bearing
  • HP Capacity: 1125 HP
  • Garrett P/N: 860779-5016S
  • Also Known As: G45-1125

Wheels

  • Compressor wheel: 67 mm inducer, 102 mm exducer, 44 trim
  • Turbine wheel: 89 mm inducer, 82 mm exducer, 84 trim

These are the wheels of the Garrett G45-1125, as published for the complete turbo. The CHRA is that turbo’s center section.

Weight 10 lbs
