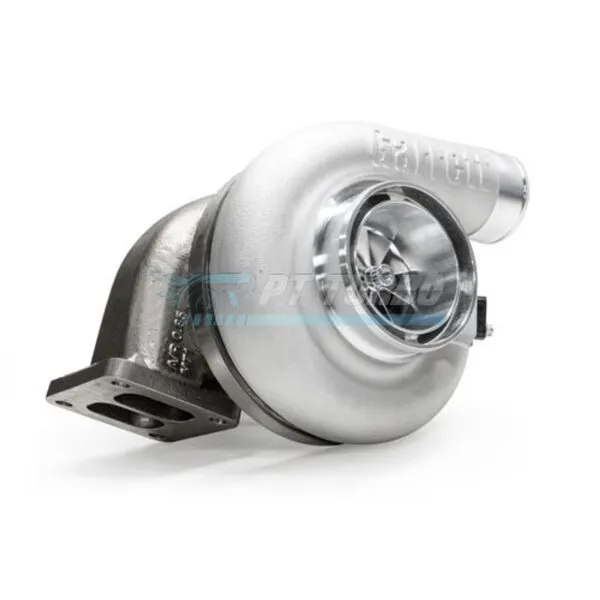

Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.06 A/R Turbine Housing

Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ T4 Divided 1.06 A/R Turbine Housing

$3,203.33

High-boost G-Series turbo with 62mm compressor wheel, 0.80 A/R compressor housing, and T4 divided 1.06 A/R turbine housing. Ball-bearing design delivers responsive spooling for street and track applications. Trim 51/84 configuration optimizes mid-range torque and peak power delivery.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 51
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: T4 Divided, 1.06 A/R
  • Bearing Type: Ball Bearing

Downloads

Weight 10 lbs
