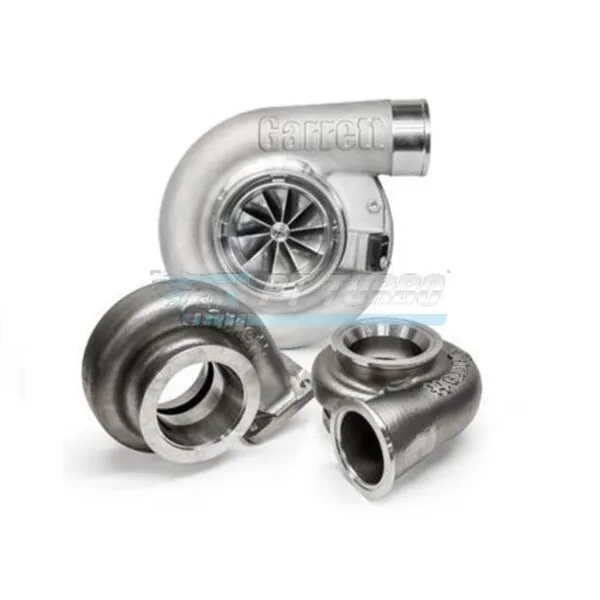

Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ .85 A/R V-BAND IN/OUT Turbine Hsg

Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ .85 A/R V-BAND IN/OUT Turbine Hsg

$3,203.33

Ball-bearing G40-900 with 62mm compressor wheel, 88mm exducer, and 0.85 A/R turbine housing. Rated for 900 hp. V-band in/out configuration.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 51
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84
  • Turbine Housing A/R: 0.85
  • Turbine Housing Configuration: V-Band In/Out
  • Bearing Type: Ball Bearing
  • HP Rating: 900 hp

Downloads

Weight 10 lbs
Turbo Model

Reviews

There are no reviews yet.

Be the first to review “Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ .85 A/R V-BAND IN/OUT Turbine Hsg”

Reviews are from customers who bought this product. Please use the email address from your order; it is not shown.

Rebuild service for the G40-900

Rather rebuild the one you have? Garrett Turbo Rebuild Service, balanced in-house, 12-month unlimited-mileage warranty.
