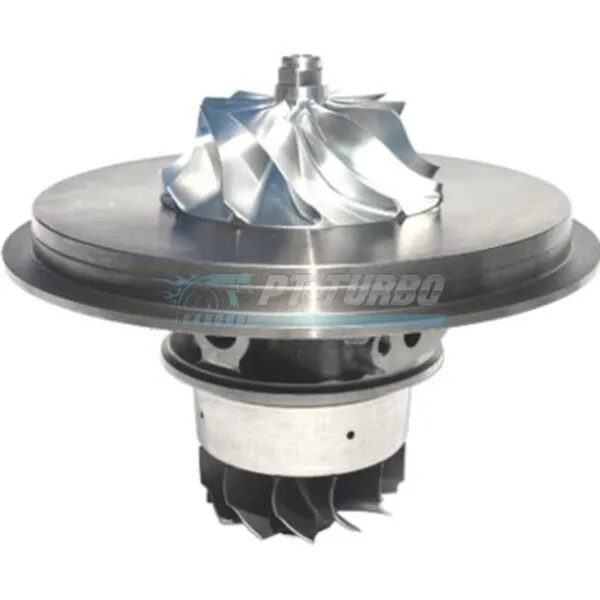

Garrett G-SERIES G25 CHRA G25-550-FR (REGULAR ROTATION), P/N: 860701-5001S

The Garrett G25 CHRA G25-550-FR represents the core of one of the most versatile center housings in the G Series lineup, built for enthusiasts who demand quick spool without sacrificing top-end capability. This regular rotation configuration is engineered for builders who want a proven ball-bearing platform at the heart of a mid-range performance turbocharger. It’s the right choice for anyone building a G25-550 turbo from the ground up or replacing a core in an existing setup.

Specifications

• Compressor Wheel: 62mm
• Turbine Wheel: 60mm
• Turbine Housing A/R: 0.61
• Bearing Type: Ball bearing
• HP Capacity: Up to 550 HP
• Rotation: Regular rotation (FR)
• Frame Size: G25-550
• Garrett P/N: 860701-5001S

Performance & Application

This G25-550-FR CHRA is designed to deliver responsive mid-range boost thanks to its ball-bearing center housing and matched 62mm compressor and 60mm turbine wheel combination. The 0.61 A/R turbine housing configuration supports excellent spool characteristics while enabling the turbo to support up to 550 HP. Builders looking for a strong balance of quick response and sustained power delivery will find this CHRA well suited to their application. The regular rotation configuration makes it a direct fit for setups specifically calling for this rotational orientation.

Frequently Asked Questions

What HP can the G25-550-FR CHRA support?

This CHRA supports up to 550 HP.

Is this a ball bearing or journal bearing center housing?

The G25-550-FR features a ball-bearing center housing.

What is the A/R ratio of the turbine housing paired with this CHRA?

It is designed around a 0.61 A/R turbine housing.

What wheel sizes does the G25-550-FR use?

It features a 62mm compressor wheel and a 60mm turbine wheel for responsive mid-range boost and excellent spool characteristics.

For builders seeking a ball-bearing G25 core with proven mid-range response and a 550 HP ceiling, the G25-550-FR CHRA delivers the exact specification needed to build or rebuild with confidence.
