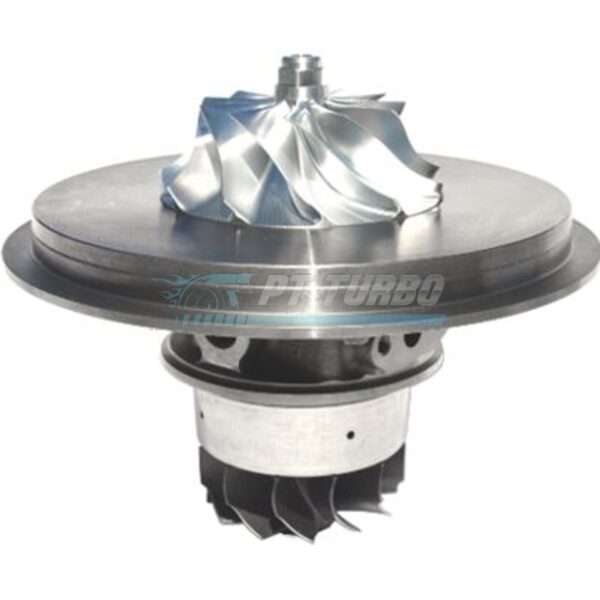

Garrett CHRA – G-Series II G45-1610, P/N: 938338-5004S

Specifications

• Product Line: Garrett G-Series II
• Model: G45-1610
• Configuration: CHRA (Cartridge)
• Housing Compatibility: Utilizes Gen I compressor and turbine housings
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Rotation Configurations: Standard and reverse rotation configurations available
• Turbine Wheel Material: Mar-M alloy, rated up to 1050° C

Wheels and rating

• Compressor wheel: 79 mm inducer, 98 mm exducer, 65 trim
• Turbine wheel: 89 mm inducer, 82 mm exducer, 84 trim
• Garrett’s rating: 750 to 1610 hp, for engines of 2.0 to 8.0 liters

Figures from Garrett’s catalog page for the G-Series II G45-1610 for part number 938338-5004S.

Downloads

• Garrett-G-Series-II-Product Flyer G40 42 45
