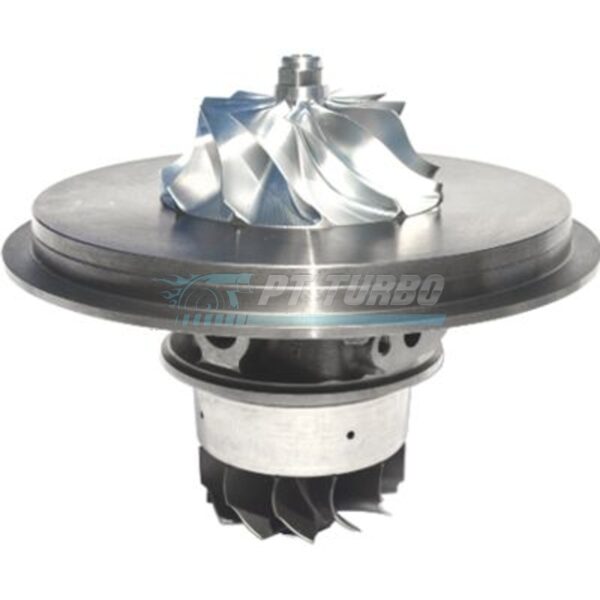

Garrett CHRA – G-Series II G40-1250, P/N: 938271-5002S

Specifications

• Model: G-Series II G40-1250
• Garrett P/N: 938271-5002S
• Turbine Wheel Material: Mar-M alloy, rated up to 1050°C

Wheels and rating

• Compressor wheel: 71 mm inducer, 88 mm exducer, 65 trim
• Turbine wheel: 77 mm inducer, 70 mm exducer, 84 trim
• Garrett’s rating: 500 to 1250 hp, for engines of 2.0 to 6.0 liters

Figures from Garrett’s catalog page for the G-Series II G40-1250 for part number 938271-5002S.

Downloads

• Garrett-G-Series-II-Product Flyer G40 42 45
