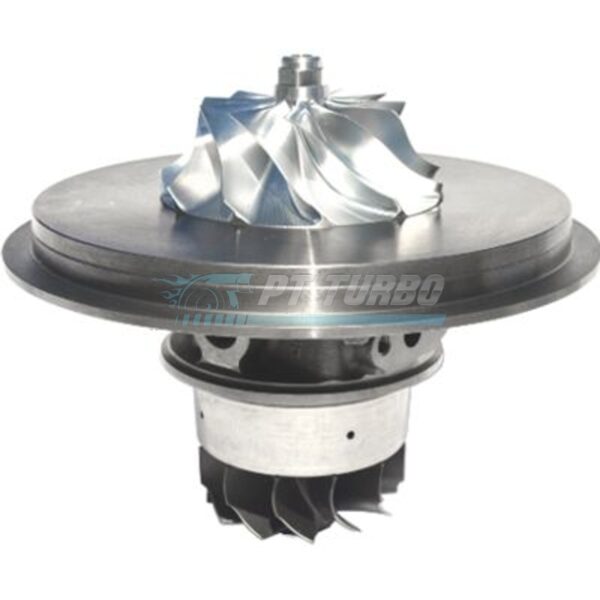

Garrett CHRA – G-Series II G25-700 Reverse Rotation, P/N: 934113-5002S

Specifications

• Compressor Housing Compatibility: Utilizes Gen I compressor housings
• Turbine Housing Compatibility: Utilizes Gen I turbine housings
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Rotation Configuration: Reverse Rotation
• Turbine Wheel Material: Mar-M alloy
• Turbine Wheel Temperature Rating: Rated up to 1050° C
• Turbine Housing Material: Stainless steel
• Turbine Housing Temperature Rating: Rated up to 1050° C
• Garrett P/N: 934113-5002S

Wheels and rating

• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim
• Garrett’s rating: 350 to 700 hp, for engines of 1.4 to 3.0 liters

Figures from Garrett’s G-Series II product guide for part number 934113-5002S.

Matching parts (sold separately)

• Inlet V-Band Flange (Turbo Manifold Side)
• Outlet V-Band Flange (Down-pipe Side)
• Oil Drain Flange
• Oil Drain Gasket
• Oil Drain Fasteners
• Boost Pressure Port Fitting
• Speed Sensor Kit

Call (909) 824-1020 and we add these matching parts to your order.

Downloads

• Garrett-G-Series-II-Product Flyer
