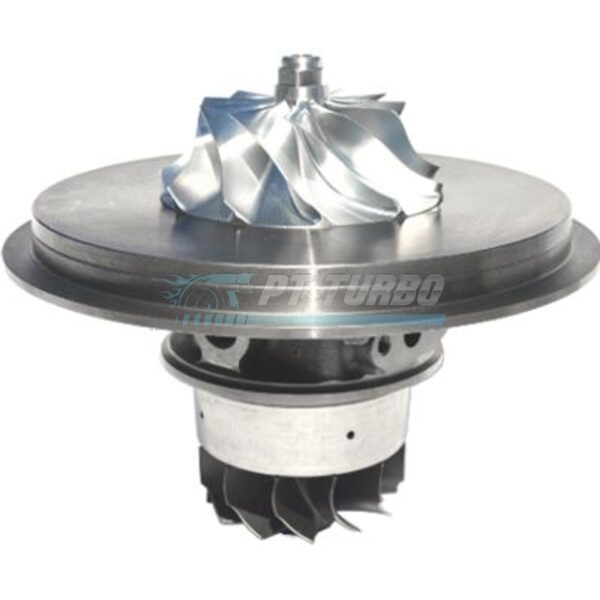

Garrett CHRA – G-Series II G25-585 Reverse Rotation, P/N: 934113-5001S

The Garrett G25-585 Reverse Rotation CHRA represents the next evolution of Garrett’s proven G-Series platform, engineered for enthusiasts and builders seeking a direct performance upgrade from their existing G-Series Gen I turbo. Built with new compressor aero technology, this core assembly is the ideal choice for those who already own G-Series housings and want to unlock additional flow and efficiency without replacing their entire turbo system. It’s a purpose-built solution for serious builds demanding more power from proven Garrett architecture.

Specifications

• Model: G25-585 Reverse Rotation
• Rotation: Reverse rotation configuration
• Compressor Flow Improvement: Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Turbine Wheel Material: Mar-M alloy
• Turbine Wheel Temperature Rating: Rated up to 1050° C
• Turbine Housing Material: Stainless steel
• Turbine Housing Temperature Rating: Rated up to 1050° C
• Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-350
• Outlet V-Band Flange (For Down-pipe): ATP-FLS-351
• Oil Drain Flange: ATP-FLA-010
• Oil Drain Gasket: GRT-GSK-008
• Oil Drain Fasteners: MIA-FST-034
• Boost Pressure Port Fitting: ATP-FTG-198
• Speed Sensor Kit: ATP-ACS-032
• Garrett P/N: 934113-5001S

Performance & Application

This G-Series II CHRA is designed as a direct up

Downloads

• Garrett-G-Series-II-Product Flyer
