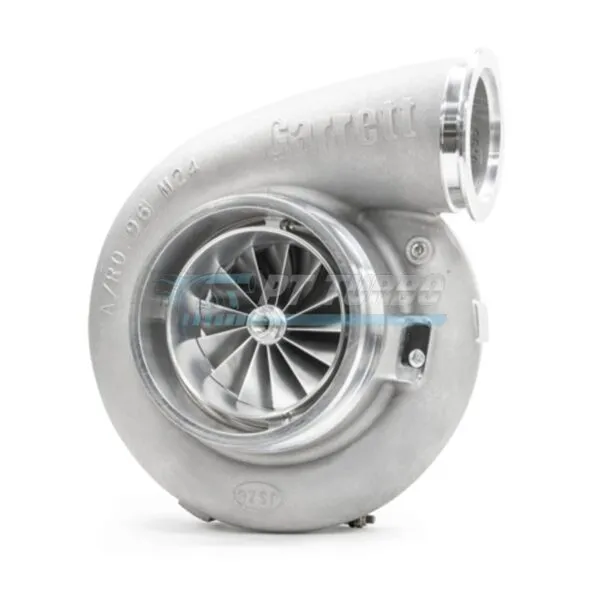

G57-3000 106mm Super Core P/N: 880547-5030S, G57 Turbo W/O turbine housing (Replaces 880547-5007S)

Specifications

• Compressor Wheel Inducer: 106mm
• Turbine Wheel Inducer: 118mm
• Turbine Wheel Exducer: 112mm
• Turbine Trim: 90 trim
• Turbine Wheel Material: Inconel
• Turbine Flow Increase: Up to 28% more flow (compared to GTX Gen II)
• Center Housing: One-piece aluminum, air cooled
• Bearing System: 16mm dual ceramic ball bearing
• HP Capacity: Supports up to 3000 horsepower
• Compressor Inducer Options (G57 Family): 88mm, 94mm, 98mm, 102mm, 106mm
• Outline: Interchangeable with GTX Gen II turbos
• Garrett P/N: 880547-5030S
• Alternate P/N: 880547-5007S (superseded)
