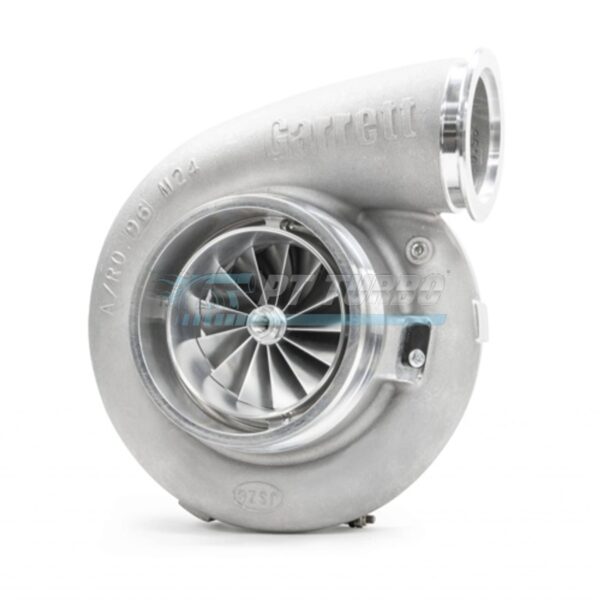

The G57-2425 98mm Super Core is a purpose-built turbocharger core engineered for extreme horsepower drag racing applications, including Radial vs The World and X275 competition. Delivered without a turbine housing, this Super Core gives serious racers and engine builders the flexibility to pair Garrett’s most advanced G Series turbine technology with the housing configuration that best suits their build. This is the choice for teams chasing maximum output where reliability and flow at the extreme end of the power band cannot be compromised.
Specifications
- Compressor Wheel Inducer: 98mm
- Turbine Wheel Inducer: 118mm
- Turbine Wheel Exducer: 112mm
- Turbine Trim: 90
- Turbine Wheel Material: Inconel
- Turbine Flow Increase: Up to 28% (compared to GTX Gen II)
- Bearing System: 16mm dual ceramic ball bearing
- Center Housing: One-piece aluminum, air cooled
- HP Capacity: Up to 3000 horsepower
- Garrett P/N: 880547-5033S
- Alternate P/N: 880547-5010S (replaced)
Performance & Application
Built for the highest tiers of drag racing competition, the G57-2425 98mm Super Core is engineered to support extreme horsepower levels while maintaining premium rotor dynamics under sustained high-load conditions. The Inconel turbine wheel with optimized G Series aerodynamics delivers a significant flow advantage over previous GTX Gen II designs, translating to stronger top-end performance without sacrificing durability. The one-piece aluminum center housing reduces overall supercore weight while the air-cooled design and dual ceramic ball bearing cartridge provide the stability required for repeated full-throttle passes. This core is intended for racers building toward maximum output applications like Radial vs The World and X275 Drag Racing.
Compatibility & Fitment
- Radial vs The World drag racing applications
- X275 Drag Racing applications
- Outline interchangeable with GTX Gen II turbos
- Compatible with Garrett G57 stainless steel V-band turbine housings in 1.09 A/R, 1.25 A/R, and 1.41 A/R
Frequently Asked Questions
- What horsepower can the G57-2425 98mm Super Core support?
- This Super Core supports up to 3000 horsepower.
- Is this a ball bearing or journal bearing turbo?
- The G57-2425 uses a 16mm dual ceramic ball bearing for premium rotor dynamics.
- Does this Super Core include a turbine housing?
- No, this is a G57 turbo Super Core without turbine housing. It is compatible with Garrett’s stainless steel V-band turbine housings offered in 1.09 A/R, 1.25 A/R, and 1.41 A/R.
- What does P/N 880547-5010S refer to?
- 880547-5010S is the previous part number that has been replaced by 880547-5033S.
- How much more turbine flow does the G57 offer compared to GTX Gen II?
- The G57’s newly engineered turbine wheel incre
