Drag Race GTX4502R, 55 Trim, 75.8 Inducer, 102.3 Exducer – Garrett P/N: 800269-12

The Drag Race GTX4502R is purpose-built for competitors racing in classes that cap compressor wheel size at 76mm, giving drag racers a way to extract maximum flow without breaking class rules. Engineered by Garrett for teams that need a drop-in upgrade path from existing GT42 turbo systems, this bare compressor-side unit is the choice for racers who demand class-legal performance without sacrificing top-end capability.

Specifications

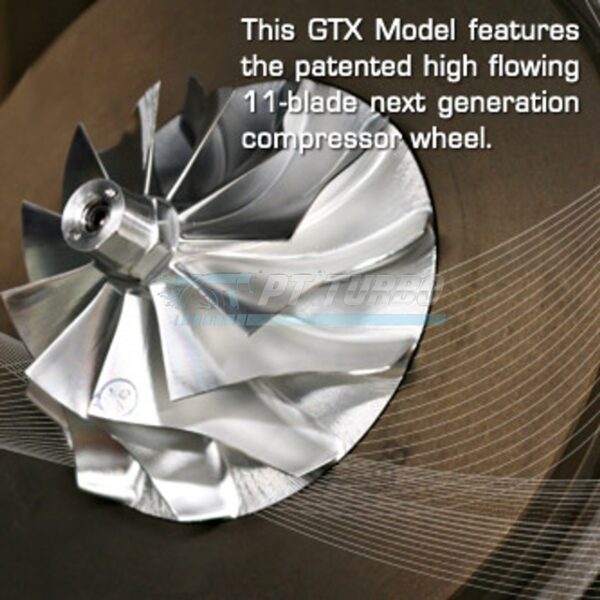

• Compressor Wheel Trim: 55 Trim
• Compressor Wheel Inducer: 75.8 mm
• Compressor Wheel Exducer: 102.3 mm
• Turbine Housing: Not included
• Turbine Housing Compatibility: Mates to any GT45 series turbine housing
• Compressor Housing Style: Same as GT42
• Bearing System: Ball Bearing (Garrett GTX-R Ball Bearing series)
• Garrett P/N: 800269-12
• Alternate P/N: 800269-5012
• Alternate P/N: 800269-5012S

Performance & Application

This GTX4502R is designed specifically to meet class requirements limited to a 76mm compressor wheel, making it the go-to solution for drag racers competing under those restrictions. Built on Garrett’s GTX45 platform with ball bearing technology, it delivers the flow characteristics competitive teams need while staying within a strict wheel size limit. Because the turbine side mates to any GT45 series turbine housing and the compressor housing matches the GT42 style, this unit is externally interchangeable with an existing GT42 turbo setup — allowing racers to upgrade compressor-side performance without reworking their entire turbo system.

Frequently Asked Questions

Does the GTX4502R come with a turbine housing?

No, this turbo is sold with no turbine housing included.

What turbine housings are compatible with this turbo?

The turbine side of this turbo will mate to any GT45 series turbine housing.

Can this replace an existing GT42 turbo setup?

Yes, it uses the same compressor housing style as the GT42 and is externally interchangeable with an existing GT42 turbo setup.

Why does the GTX4502R use a 55 trim, 75.8mm inducer wheel?

This turbo is built to meet class requirements that are limited to a 76mm compressor wheel.

For drag racers boxed in by a 76mm compressor wheel class limit, the GTX4502R delivers Garrett-engineered performance and seamless GT42 compatibility without compromise.
