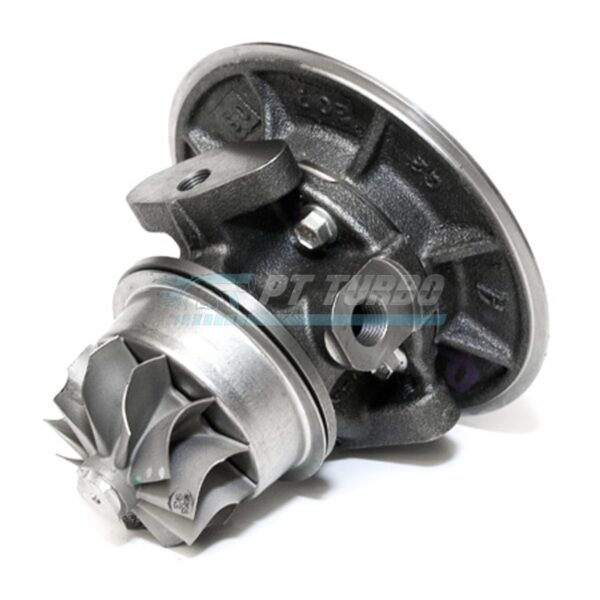

The CHRA-GT4094R is a complete ball-bearing center housing rotating assembly built for enthusiasts and builders chasing serious top-end flow without sacrificing the durability of Garrett’s ball-bearing platform. It’s engineered as a drop-in core replacement or rebuild solution for those running the GT4094R turbocharger who need maximum airflow capability. This is the right choice for high-boost setups where flow, not just spool, is the priority.
Specifications
- Compressor Wheel Size: 76mm
- Turbine Wheel Size: 94mm
- Bearing Type: Ball Bearing
- HP Capacity: Up to 650 hp
- Garrett P/N: 751450-5016S
- Alternate P/N: 751450-5016
Performance & Application
This CHRA is designed for high-boost applications that demand maximum flow, making it well suited for builds pushing toward the upper end of its rated power capability. The ball-bearing design supports the responsiveness and durability Garrett’s GT4094R platform is known for, while the 94mm turbine and 76mm compressor combination is tuned for serious airflow. It’s a strong fit for performance builds where sustained high-output boost is the goal rather than low-end spool.
Frequently Asked Questions
- What HP can the CHRA-GT4094R support?
- This ball-bearing CHRA supports up to 650 hp.
- Is this a ball bearing or journal bearing unit?
- This is a ball-bearing CHRA.
- What size is the compressor wheel?
- The compressor wheel measures 76mm.
- What size is the turbine wheel?
- The turbine wheel measures 94mm.
For builds that require maximum flow and the reliability of Garrett’s ball-bearing engineering, the CHRA-GT4094R delivers the capability serious high-boost applications demand.
