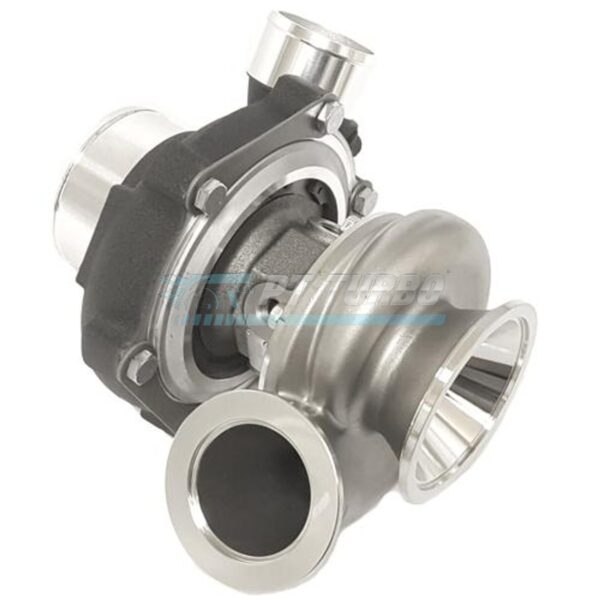

The Garrett GTX2860R Gen2 in Black brings billet-wheel technology and dual ball bearing durability to enthusiasts chasing quick spool and strong top-end power in a compact frame. Paired with a stainless steel Tial V-band turbine housing, this turbo is built for tuners who demand precise flow control and flexible mounting options. It’s the right choice for anyone stepping up from a stock or entry-level turbo who wants proven Garrett Gen2 performance and reliability.

Specifications

• Compressor Wheel Inducer: 46mm
• Compressor Wheel Exducer: 60mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• Turbine Housing A/R: .64
• Turbine Housing Material: Stainless Steel
• Turbine Housing Inlet/Outlet: V-Band Inlet and V-Band Outlet
• Bearing System: Dual Ball Bearing
• Compressor Wheel Type: Gen2 Billet
• HP Capability: 475HP
• Color: Black

Performance & Application

This Gen2 GTX2860R is engineered for builds targeting up to 475HP, making it well suited for enthusiasts pushing serious power out of a compact turbocharger package. The advanced Gen2 billet compressor wheel combined with the dual ball bearing center section delivers optimal spool characteristics for responsive, efficient performance. The stainless V-band turbine housing offers flexible mounting for custom exhaust and manifold setups, making this turbo a strong fit for performance-focused builds that demand both quick response and top-end capability.

Frequently Asked Questions

What HP can the GTX2860R support?

The Gen2 billet compressor wheel is capable of supporting up to 475HP.

Is this a ball bearing or journal bearing turbo?

This is a dual ball bearing turbocharger.

What turbine housing A/R and material does this turbo use?

It comes with a stainless steel .64 A/R turbine housing.

What type of inlet and outlet does the turbine housing have?

The turbine housing features a V-Band Inlet and V-Band Outlet for flexible mounting.

For builds that demand proven Garrett Gen2 technology, ball bearing durability, and up to 475HP of capability, the GTX2860R with its stainless V-band turbine housing delivers the performance and flexibility serious enthusiasts require.
