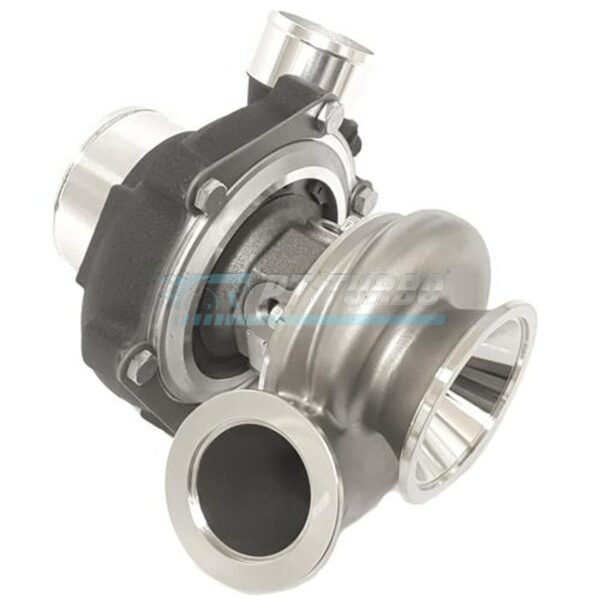

The Garrett GTX2860R Gen2 turbocharger in black finish is engineered for performance enthusiasts seeking serious top-end power without sacrificing response. Paired with a premium TiAL Stainless Steel V-band turbine housing, this dual ball bearing unit is built for builds demanding both durability and precision. It’s the ideal choice for enthusiasts who want a proven Garrett Gen2 platform finished to a higher standard.

Specifications

• Compressor Wheel Inducer: 46mm
• Compressor Wheel Exducer: 60mm
• Compressor Wheel Trim: 58
• Compressor Housing A/R: 0.60
• Turbine Wheel Inducer: 54mm
• Turbine Wheel Exducer: 47mm
• Turbine Wheel Trim: 76
• Turbine Housing A/R: .52
• Bearing Type: Dual Ball Bearing
• Turbine Housing Material: TiAL Stainless Steel
• Turbine Housing Inlet: V-Band
• Turbine Housing Outlet: V-Band
• HP Capacity: 475HP
• Finish: Black

Performance & Application

This GTX2860R Gen2 turbocharger is built around an advanced billet compressor wheel designed to deliver strong response with the efficiency needed to support serious horsepower goals. The dual ball bearing center cartridge provides quick spool characteristics, making this turbo well suited to enthusiasts prioritizing throttle response alongside top-end capability. The stainless TiAL V-band turbine housing configuration adds durability and simplifies installation for performance-focused builds. This turbo is suited for applications targeting up to 475HP.

Frequently Asked Questions

What HP can the GTX2860R support?

This Gen2 GTX2860R turbocharger is capable of supporting up to 475HP.

Is this a ball bearing or journal bearing turbo?

This GTX2860R is a dual ball bearing turbocharger.

What turbine housing A/R and flange type does this use?

It features a .52 A/R TiAL Stainless Steel turbine housing with V-Band inlet and V-Band outlet.

What is the compressor housing A/R ratio?

The compressor housing A/R ratio is 0.60.

For enthusiasts who demand proven Garrett Gen2 technology paired with premium TiAL stainless construction, this black GTX2860R delivers the response and capability needed for a serious performance build.
