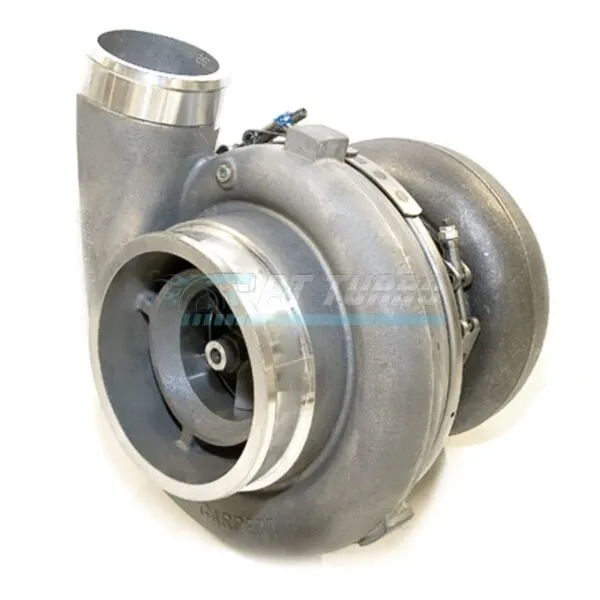

Ball Bearing Garrett GT4708R (aka GT4780-R)

Ball Bearing Garrett GT4708R (aka GT4780-R)

$2,507.49

Ball bearing GT4708R (P/N 775839-5001S) capable of nearly 1200hp with 108mm/56-trim compressor wheel (.69 A/R, 6″ inlet/3.5″ slip-on outlet) and 92.7mm/82-trim turbine wheel (1.08-1.39 A/R options, T6 undivided inlet, 5″ V-band outlet). High-flow design for extreme boost applications.

Specifications

  • Bearing Type: Ball Bearing
  • Compressor Wheel Diameter: 108mm exducer / 80.8mm inducer
  • Compressor Wheel Trim: 56 trim
  • Compressor Housing A/R: 0.69 A/R
  • Compressor Inlet: 6″ inlet
  • Compressor Outlet: 3.5″ outlet, slip-on connection
  • Turbine Wheel Diameter: 92.7mm
  • Turbine Wheel Trim: 82 trim
  • Turbine Housing Inlet: T6 undivided inlet
  • Turbine Housing Outlet: 5″ V-band outlet
  • Available Turbine Housing A/R Options: 0.96, 1.08, 1.23, 1.39
  • HP Capacity: Capable of close to 1200HP
  • Garrett P/N: 775839-5001S
  • Also Known As: GT4780-R
  • Alternate P/N: 769210-0001
Weight 20 lbs
TURBINE HOUSING

, ,
