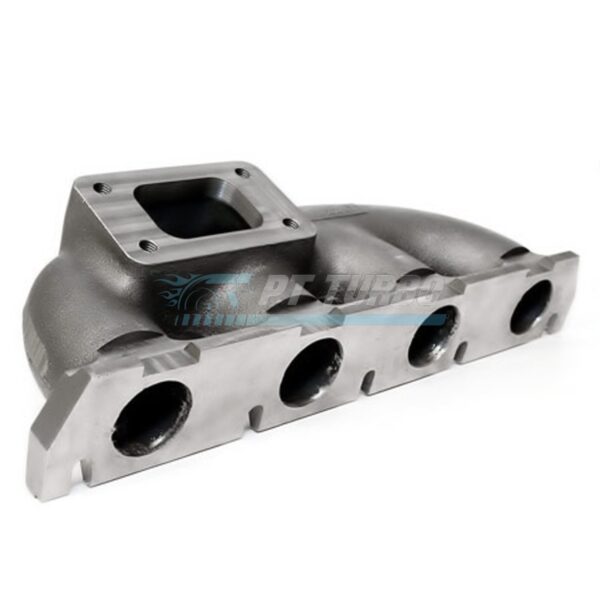

2.0T FSI/TSI Turbo Manifold – T3 flanged

Built for FSI/TSI owners chasing serious turbo power, this cast iron T3-flanged manifold is the foundation for a proper big-turbo build on the 2.0T platform. It’s engineered to bolt up to a range of popular T3 turbochargers and pairs with an external wastegate setup for precise boost control. If you’re moving beyond stock turbo limitations and want a manifold that can handle real horsepower, this is the piece that makes it possible.

Specifications

• Flange Type: T3
• Material: Cast iron
• Wastegate Provision: External wastegate port
• Wastegate Compatibility: Tial 38mm external
• Wastegate Compatibility (Alternate): Tial 44mm external (using billet adapter)
• Compatible Turbos: GT30R, GT35R, T04Z, or other T3 flanged turbos
• Power Capability: 350 HP at just over 1 bar of boost
• Kit Contents: Manifold only

Performance & Application

This manifold is purpose-built for the 2.0T FSI turbo engine platform and designed to work with a full 2.0T FSI turbo kit. It supports a range of T3-flanged turbochargers including the GT30R, GT35R, and T04Z, giving builders flexibility in choosing the right turbo for their power goals. With an external wastegate port, boost control is handled independently of the turbo’s internal gate, allowing for more precise and consistent boost management. When paired with a GT-series turbo, this manifold has demonstrated the ability to produce 350 HP on just a little over 1 bar of boost.

Compatibility & Fitment

• 2006 and later VW Golf (2.0T FSI/TSI, transverse FWD)
• 2006 and later VW Jetta (2.0T FSI/TSI, transverse FWD)
• 2006 and later VW GTI (2.0T FSI/TSI, transverse FWD)
• 2006 and later Audi A3 (2.0T FSI/TSI, transverse FWD)

Frequently Asked Questions

What turbochargers work with this manifold?

The manifold is designed for use with GT30R, GT35R, T04Z, or other T3 flanged turbos.

What external wastegates can I use with this manifold?

The manifold features an external wastegate port for use with a Tial 38mm external wastegate or a Tial 44mm external wastegate using a billet adapter.

How much power can this setup make?

When used with a GT turbo as part of a full 2.0T FSI kit, this manifold enables 350 HP on just a little bit over 1 bar of boost.

What vehicles is this manifold compatible with?

Current fitment includes transversely mounted FWD 2.0T FSI models such as 2006 and on VW Golf, Jetta, GTI, and Audi A3.

For 2.0T FSI/TSI owners building toward 350+ horsepower, this T3-flanged manifold delivers the turbo flexibility and boost control precision needed to get there.
