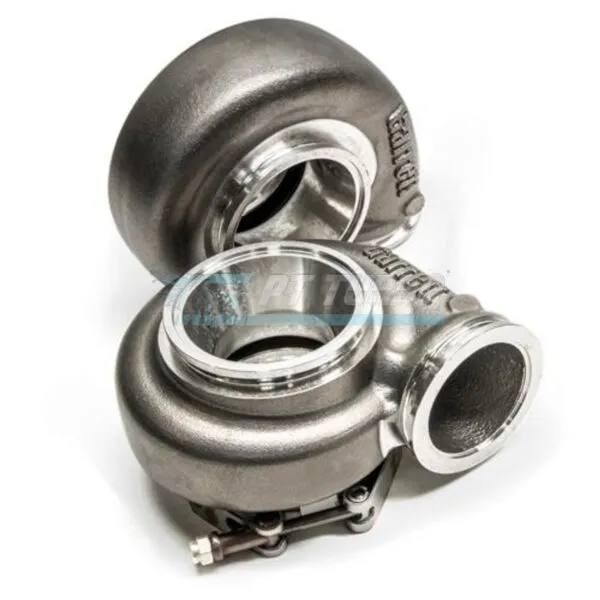

Turbine Housing Kit, Garrett G35, REVERSE ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N: 740902-0113

The Garrett G35 Reverse Rotation Turbine Housing Kit is engineered for builders running reverse rotation G35 turbocharger configurations who demand a precise, high-flow V-Band housing solution. This kit is purpose-built for enthusiasts and shops constructing custom high-boost setups where exact turbine geometry and V-Band plumbing are non-negotiable. Backed by Garrett engineering, it delivers the durability and flow characteristics required for serious performance builds.

Specifications

• A/R Ratio: 0.83 O/V
• Inlet/Outlet Configuration: V-Band In/Out
• Rotation: Reverse Rotation
• Turbine Wheel Inducer: 68mm
• Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
• Garrett P/N: 740902-0113

Performance & Application

This turbine housing kit is designed for the Garrett G35 platform in reverse rotation configuration, making it ideal for engine layouts requiring reverse-spinning turbine orientation. The 0.83 A/R O/V housing paired with the 84-trim turbine wheel is built for aggressive spool characteristics while supporting sustained power delivery across the RPM band. The V-Band inlet and outlet design simplifies installation and enables a secure, high-flow connection for custom exhaust and turbo plumbing. This configuration suits high-boost applications where reverse rotation turbo placement is required by the engine bay or exhaust routing.

Frequently Asked Questions

What A/R ratio does this turbine housing use?

This turbine housing kit uses a 0.83 A/R O/V configuration.

What type of inlet/outlet does this housing have?

This turbine housing features a V-Band inlet and outlet configuration.

Is this a standard or reverse rotation turbine housing?

This is a reverse rotation turbine housing kit, designed specifically for the Garrett G35 platform.

What are the turbine wheel dimensions for this housing?

The turbine wheel features a 68mm inducer, 62mm exducer, and 84 trim.

For builders requiring a reverse rotation G35 turbine housing with V-Band convenience and 0.83 A/R O/V flow characteristics, this Garrett kit delivers the exact engineering specification needed for a precision high-boost build.
