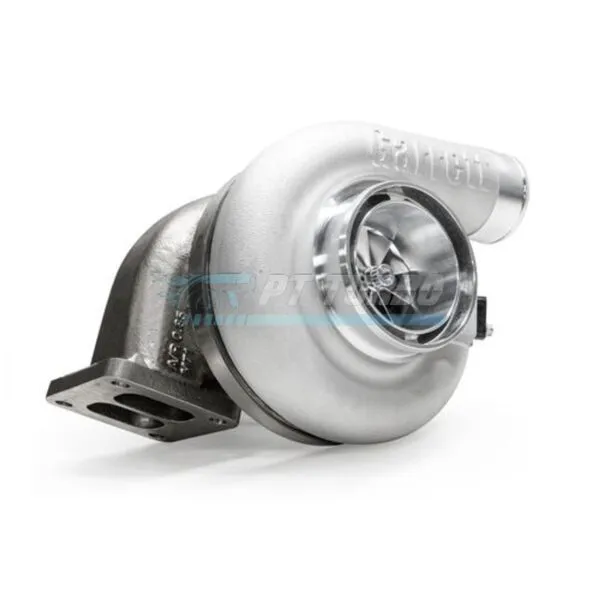

Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ T4 Divided .85 A/R Turbine Housing

Garrett G-Series G40-900 (62MM Comp Wheel) Turbocharger Unit w/ T4 Divided .85 A/R Turbine Housing

$3,203.33

This 62mm compressor/77mm turbine G-Series unit delivers aggressive boost for 900 hp applications with a 0.80 A/R compressor housing and divided T4 .85 A/R turbine housing. Ball bearing design enables fast spool and consistent performance across the RPM band.

Specifications

  • Compressor Wheel Inducer: 62mm
  • Compressor Wheel Exducer: 88mm
  • Compressor Wheel Trim: 51
  • Compressor Housing A/R: 0.80
  • Turbine Wheel Inducer: 77mm
  • Turbine Wheel Exducer: 70mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: T4 Divided, 0.85 A/R
  • Bearing Type: Ball Bearing

Downloads

Weight 10 lbs
